Characteristic
Compact structure: suitable for occasions with strict requirements on the installation space of the electronic head.
Rugged and durable: fully enclosed design. Adapt to harsh environments. The highest IP68 protection level
Straight line measurement: absolute output. No need to return to zero. Multiple signal interfaces are optional
Small size and easy to use.
Application range
- Mobile machine
| Measuring | |
| Measuring stroke | 50mm-2500mm, can be customized according to user needs |
| Accuracy / deviations | |
| Resolution | ±0.1mm（50～400mm） Range÷4096（＞400mm） |
| Nonlinearity | ±0.1mm（50～400mm） 0.02%（＞400mm） |
| Repeat accuracy | ±0.1mm |
| Update time | 2.0ms |
| Ambient conditions | |
| Ambient temperature[℃] | -40...105 |
| Protection rating | IP 67 |

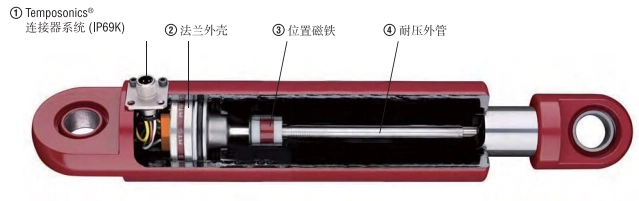

Structure diagram
